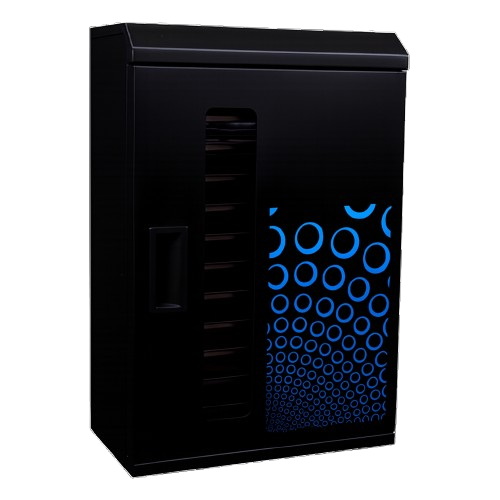

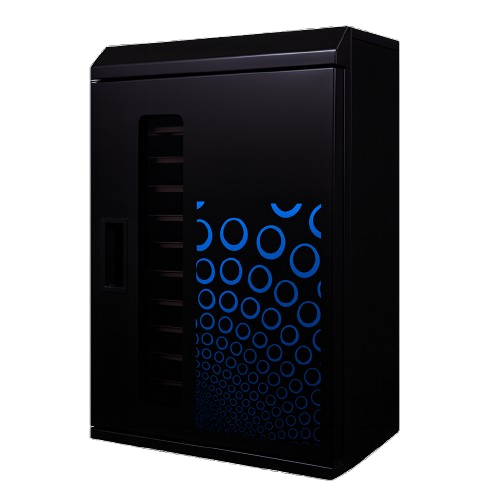

12 Trays UV Chamber

Category: CSSD Sterillization

In Stock (10 available)

Description

The 12 Trays UV Chamber is a premium-grade disinfection system designed to ensure fast, safe, and chemical-free sterilization of instruments and accessories. Built with a rust-proof stainless-steel inner chamber and equipped with a powerful Philips UV-C tube, this chamber delivers uniform UV exposure across all trays, ensuring thorough surface disinfection. Suitable for clinical, pharmaceutical, laboratory, and industrial environments, it provides reliable hygiene control with maximum efficiency.

Durable Epoxy Powder-Coated Body: Offers a glossy finish with long-lasting corrosion resistance.
High-Quality Stainless-Steel Chamber: Made using 1.00mm rust-proof SS with bright mirror finish for enhanced UV reflection.

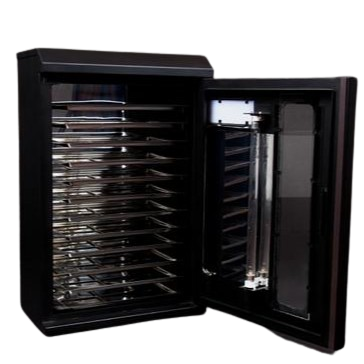

12 Stainless Steel Trays: Allows multiple items to be disinfected at once, improving workflow efficiency.
Uniform UV Exposure: Mirror-finish SS reflects UV rays evenly across all surfaces inside the chamber.
Magnetic Door Gasket: Ensures complete sealing of the chamber to prevent UV leakage.
Built-in Micro Door Switch: Automatically switches off the UV light when the door is opened, ensuring user safety.

Chamber Dimensions: 490 × 330 × 180 mm
Inner Material: Rust-proof stainless steel (1.00mm)
Trays Included: 12 stainless steel trays (0.50mm thickness)
UV Light Source: 1 × Philips 8W UV-C Tube
Power Consumption: 8 Watts
Power Supply: 220V, 50Hz
Safety Feature: Auto cut-off micro switch

Chemical-free disinfection—no residue, odor, or harmful byproducts.
Fast and efficient sterilization cycle suitable for busy clinics.
Safety ensured with micro door switch to prevent UV exposure.
Large capacity with 12 trays for multiple tools at once.
Low power consumption makes it highly energy-efficient.
Durable construction ensures long service life.

Arrange Instruments: Place clean, dry instruments evenly on the stainless-steel trays.
Close the Door: Ensure the magnetic gasket seals properly.
Turn On the UV Light: Use the switch to activate the UV-C tube.
Allow Disinfection Cycle: Keep the chamber closed for the recommended time (typically 10–20 minutes).
Auto Safety: The UV light automatically switches off if the door is opened.
Remove Sterilized Items: Once completed, open the chamber and safely remove the disinfected tools.
